DAOMI 2.4GHz & 5.8GHz Dual Band WiFi Signal Booster | 2000mW (33dBm) TX Amplifier (SHRC5824G2WP) | Auto Switch Frequency, 77g Ultra-Light Range Extender for FPV Drones & UAV

Brief introduction

The DAOMI SHRC5824G2WP is a cutting-edge dual-band Wi-Fi signal booster engineered specifically to meet the demanding requirements of modern UAVs, drones, and RC equipment. Delivering a robust 2000mW (33dBm) of real output power across both 2.4GHz and 5.8GHz frequencies, this amplifier effectively increases your signal range by 200% to 400% while maintaining high data throughput rates. Encased in a highly durable, CNC-machined cast aluminum shell, it weighs a mere 77g, offering superior anti-interference capabilities without adding unnecessary payload weight to your flight setup.

Advantages

·  Intelligent Auto-Switch Dual Band: Seamlessly operates on both 2.4GHz and 5.8GHz bands with an advanced auto-switch frequency function, ensuring you are always locked onto the strongest, interference-free channel.

·  2000mW High Power Output: Pushes up to 33dBm (2000mW) of bi-directional output power combined with a 15-18dB transmit gain, guaranteeing solid and penetrating network coverage over extreme distances.

·  Smart TDD Operation: Utilizes Time Division Duplex (TDD) technology to automatically sense RF carriers, switching smoothly between receiving and transmitting modes to prevent signal saturation.

·  Ultra-Light & Low Profile: Measuring just 9.7 x 5.2 x 1.1 cm and weighing only 77g, its minimalist design makes it an ideal solution for mounting on RC vehicles or in other space-constrained applications.

·  Flexible Wide-Voltage Power: Supports a wide 5V~16V DC input range. The kit includes versatile DC 2.5" to USB and DC 2.5" to JST adapters, allowing easy integration with standard power banks or RC LiPo batteries.

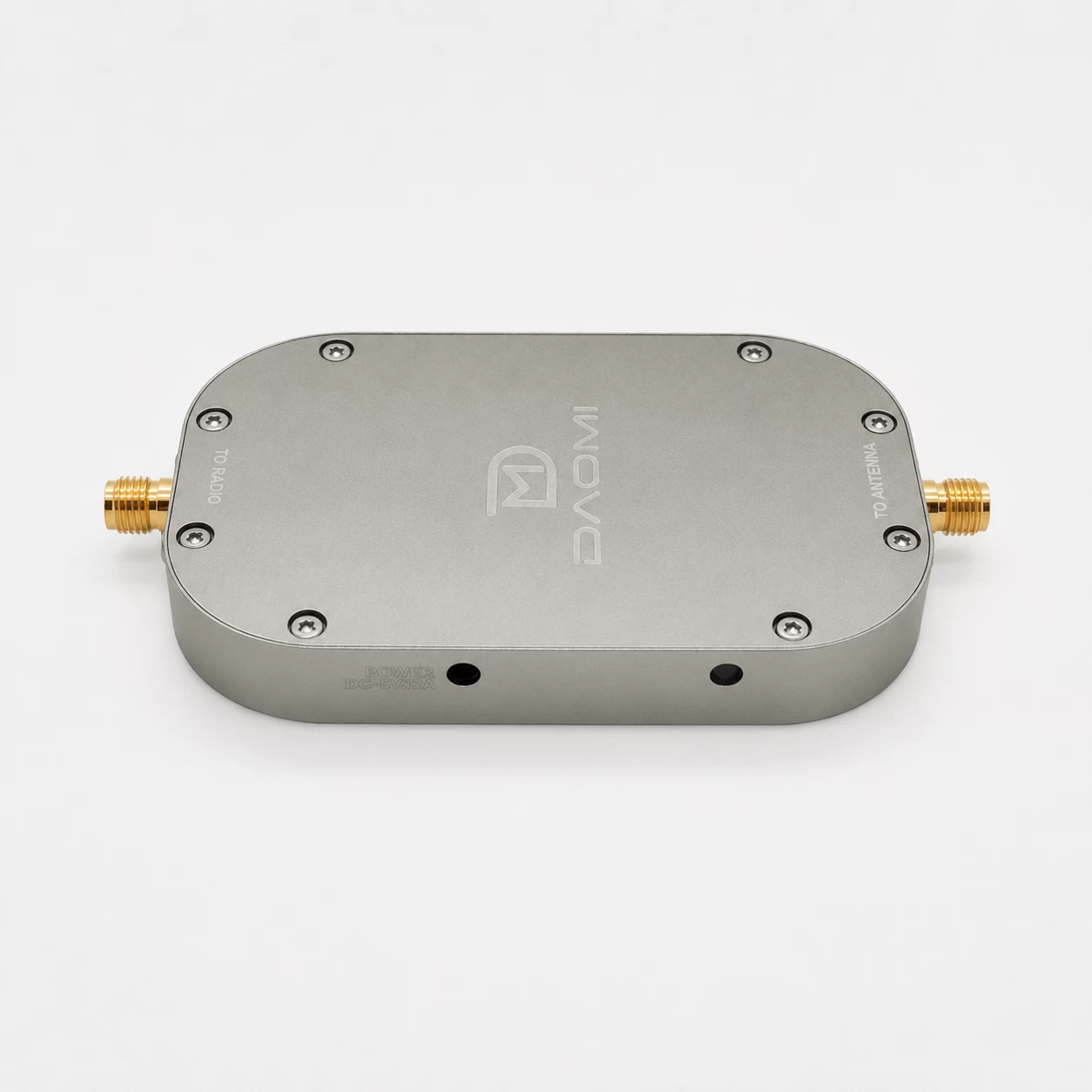

·  CNC Anti-Interference Case: The premium aluminum-alloy casing provides exceptional heat dissipation and shields internal components from electromagnetic noise.

Application scenario

·  UAV & FPV Drone Flights: Drastically extends the control range and guarantees stable, lag-free HD video transmission for drone racing and professional aerial cinematography.

·  RC Vehicles & Transmitters: Multiplies the operational distance for radio-controlled planes, cars, and boats, ensuring a rock-solid link to your RC remote.

·  Mobile & Mesh Networking: Perfect for extending Wi-Fi coverage for mobile routers, access points, and IP cameras in challenging or remote outdoor environments.

1. Performance & Frequencies:

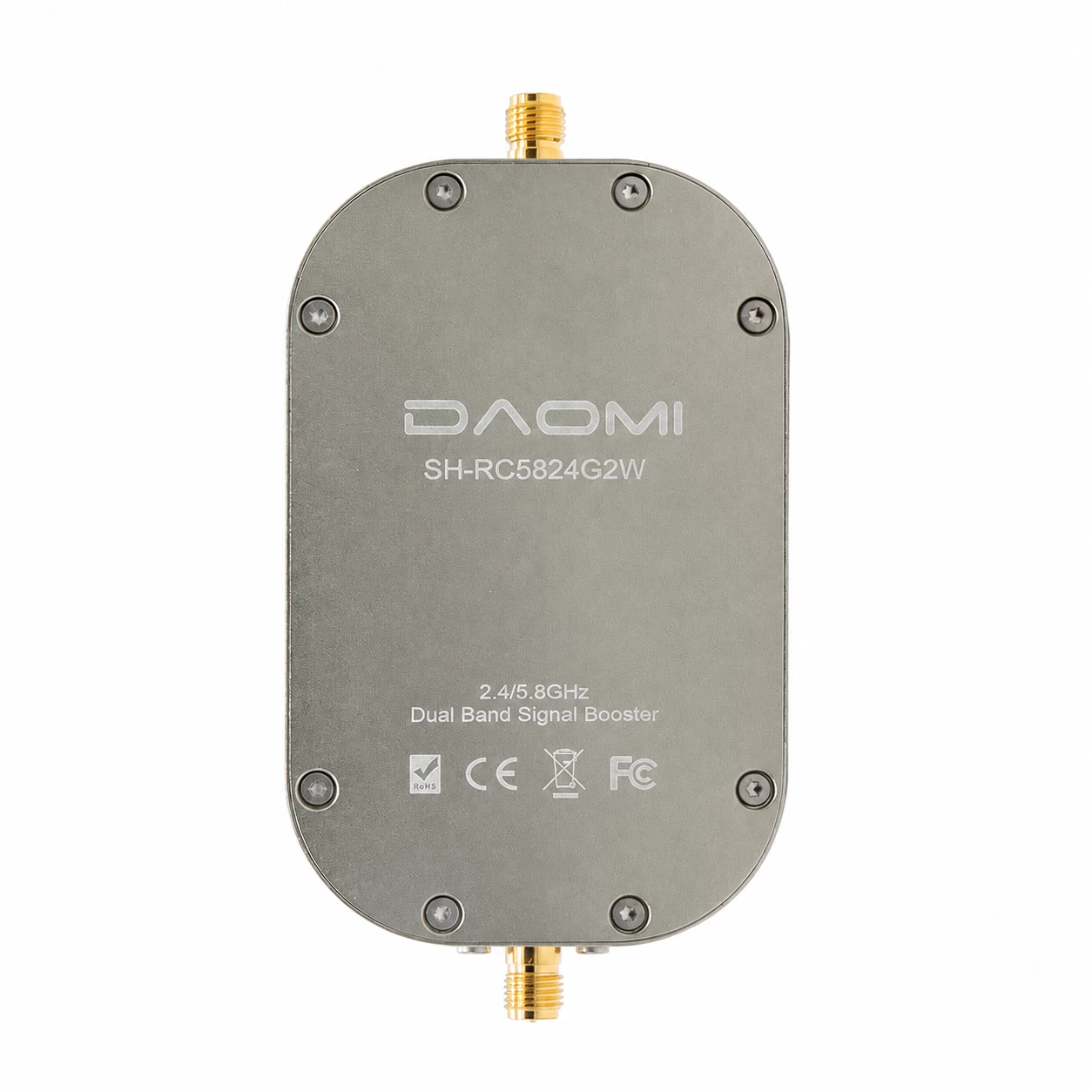

·  Booster Model: SH-RC5824G2W (SHRC5824G2WP)

·  Operating Range: 2.4~2.5 GHz & 5.0~5.875 GHz (Dual Band)

·  Operating Mode: Bi-directional, half-duplex, Time Division Duplex (TDD)

·  Output Power: 2000mW (33dBm)

·  Input Power: 0~20 dBm

·  Transmit Gain: 15-18dB

·  Receiver Gain: ≤ 12 dB

·  Noise Figure: ≤3.5 dB typical

·  Frequency Response: ±1dB over operating range

2. Hardware, Power & Mechanical:

·  Material: Cast Aluminum Alloy (CNC machining)

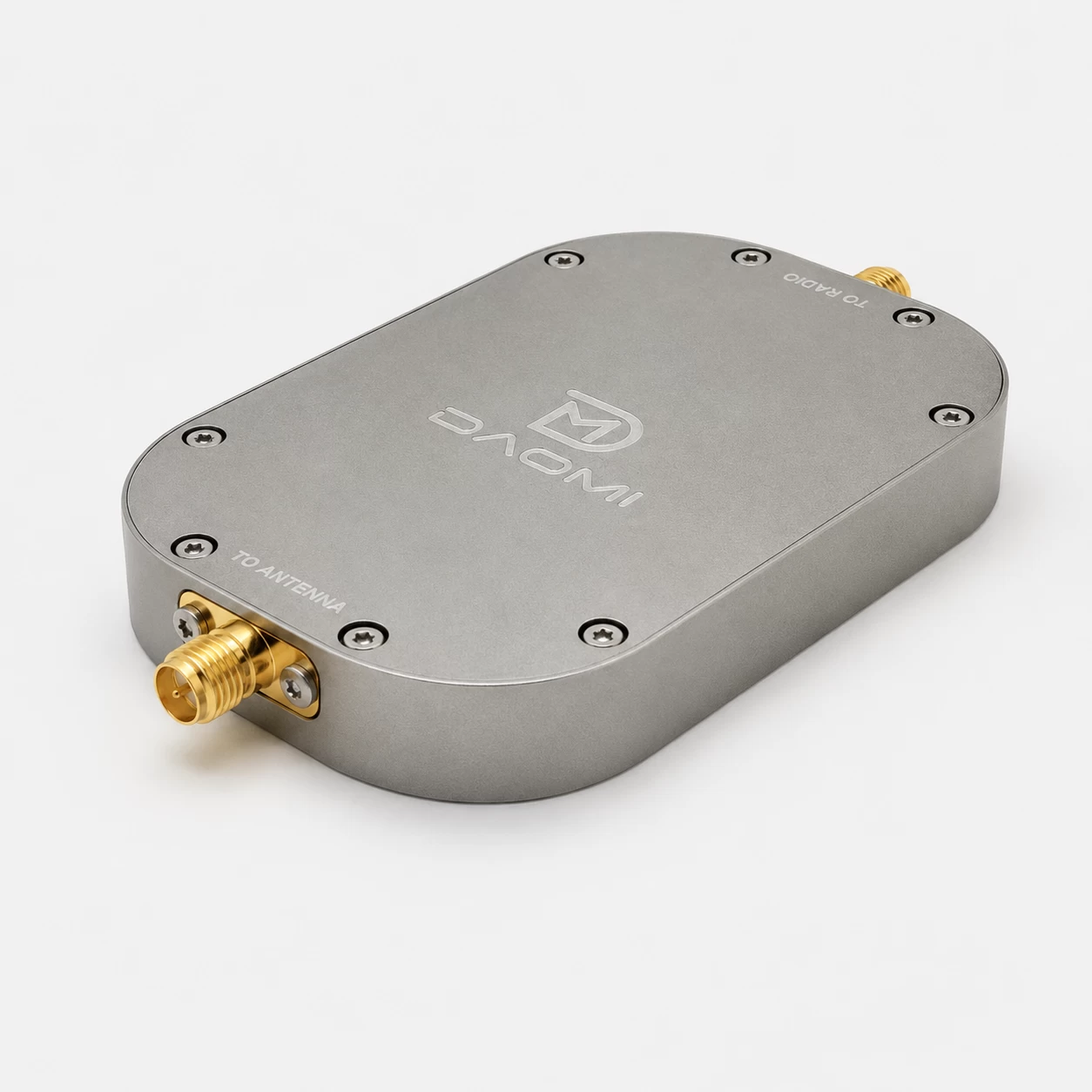

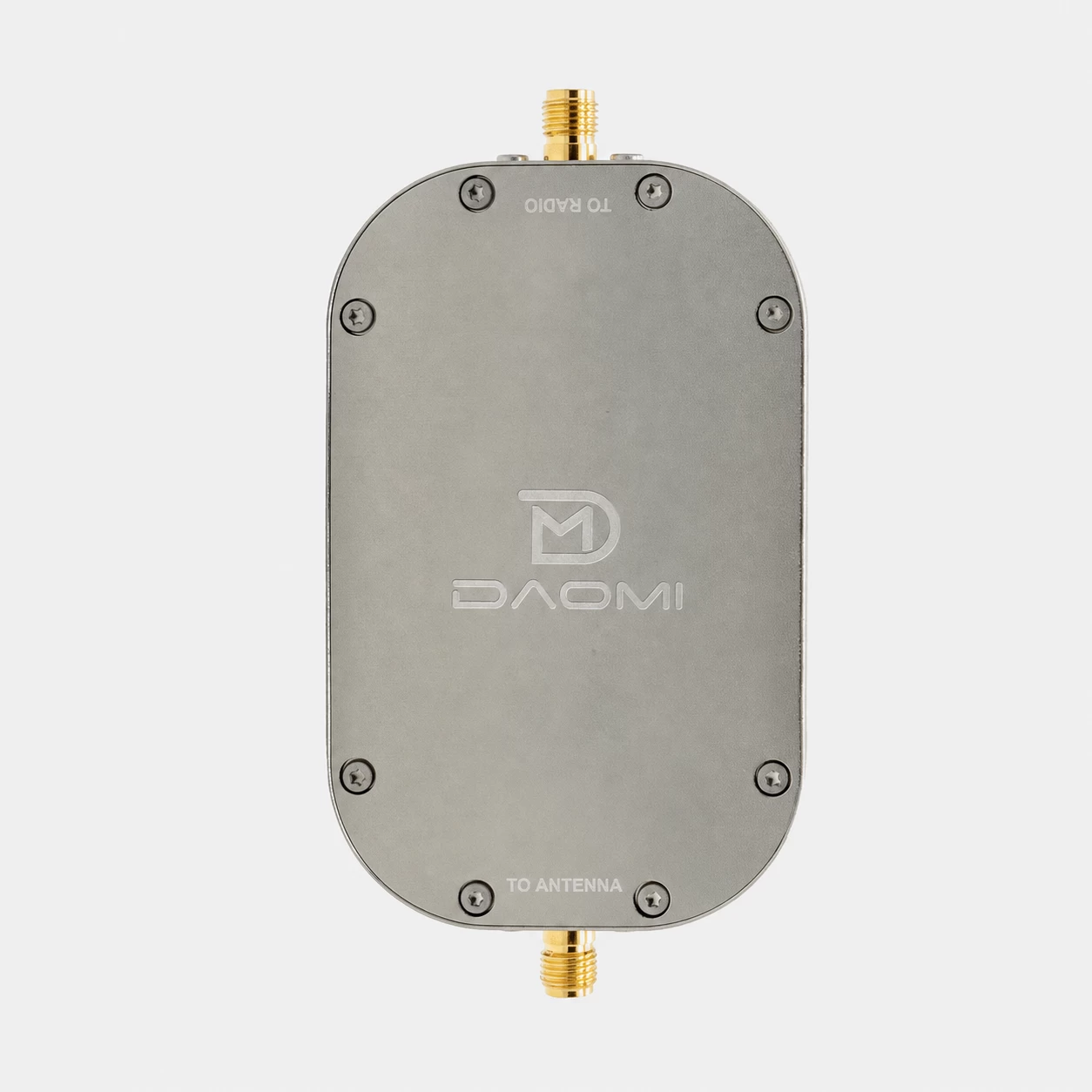

·  Connector Type (To Radio): SMA female (hole inside) 50ohm

·  Connector Type (To Antenna): RP-SMA female (pin inside) 50ohm

·  Supported Voltages: 5V~16V / 2A DC

·  LED Indicators: Green LED (Power ON / Working Properly) & Blinking Red LED (Boosting Signal)

·  Operating Temperature: -20°C to +70°C

·  Operating Humidity: Up to 75% relative humidity

·  Booster Size: 9.7 x 5.2 x 1.1 cm

·  Booster Weight: 77g

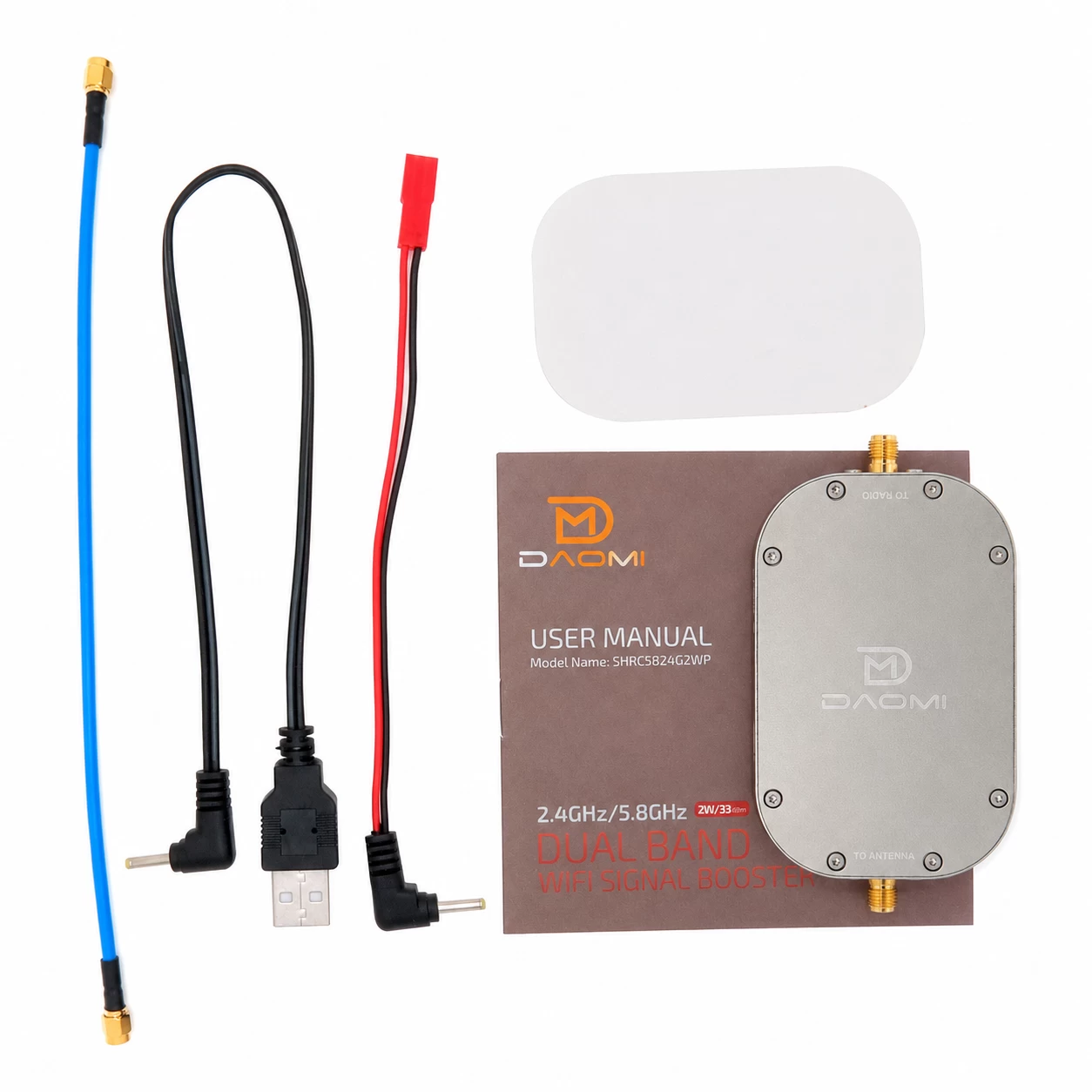

3. Complete Kit Contents:

·  1 x SH-RC5824G2W Dual Band WiFi booster

·  1 x DC 2.5" to USB adapter (For Power Banks)

·  1 x DC 2.5" to JST adapter (For RC LiPo Batteries)

·  1 x Mounting Velcro

·  1 x User Manual
